Electronic Components Ic Chip ADG721BRMZ-REEL7 ADG1419BRMZ-REEL7 IC SWITCH DUAL SPST 8MSOP

FEATURES 1.8 V to 5.5 V single supply 4 Ω (max) on resistance Low on resistance flatness −3 dB bandwidth >200 MHz Tiny package options 8-lead MSOP 3 mm × 2 mm LFCSP (A grade) Fast switching times tON, 20 ns tOFF, 10 ns Low power consumption (<0.1 μW) TTL/CMOS compatible APPLICATIONS USB 1.1 signal switching circuits Cell phones PDAs Battery-powered systems Communication systems Sample hold systems Audio signal routing Video switching Mechanical reed relay replacement

GENERAL DESCRIPTION The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches. These switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents. The devices are packaged in both a tiny 3 mm × 2 mm LFCSP and an MSOP, making them ideal for space-constrained applications. The ADG721, ADG722, and ADG723 are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc. The ADG721, ADG722, and ADG723 contain two independent single-pole/single-throw (SPST) switches. The ADG721 and ADG722 differ only in that both switches are normally open and normally closed, respectively. In the ADG723, Switch 1 is normally open and Switch 2 is normally closed. Each switch of the ADG721, ADG722, and ADG723 conducts equally well in both directions when on. The ADG723 exhibits break-before-make switching action. PRODUCT HIGHLIGHTS 1. 1.8 V to 5.5 V single-supply operation. 2. Very low RON (4 Ω max at 5 V, 10 Ω max at 3 V). 3. Low on resistance flatness. 4. −3 dB bandwidth >200 MHz. 5. Low power dissipation. CMOS construction ensures low power dissipation. 6. 8-lead MSOP and 3 mm × 2 mm LFCSP.

Product name:ADG721BRMZ-REEL7
Manufacturer: Analog Devices Inc.	Product Category: Analog Switch IC
Installation style: SMD/SMT	Package/Case: MSOP-8
Number of channels: 2 Channel	Configuration: 2 x SPST
On Resistance—Maximum: 4 Ohms	Supply Voltage - Min: 1.8 V
Supply Voltage - Maximum: 5.5 V	Run Time - Maximum: 20 ns
Idle Time - Maximum: 10 ns	Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C	Series: ADG721
Package: Reel Package: Cut Tape Package: MouseReel	Height: 0.85 mm
Length: 3 mm	Pd-Power Dissipation: 5 uW
Product Type: Analog Switch ICs	Factory Packing Quantity: 1000
Subcategory: Switch ICs	Supply Current—Maximum: 1 uA
Power Type: Single Supply	Switching DC: 30 mA
Width: 3 mm	Unit weight: 140 mg

ADG1419BRMZ-REEL7 Ic Chip

Digital Integrated Circuits ADG721BRMZ-REEL7

2 Channel ADG721BRMZ-REEL7

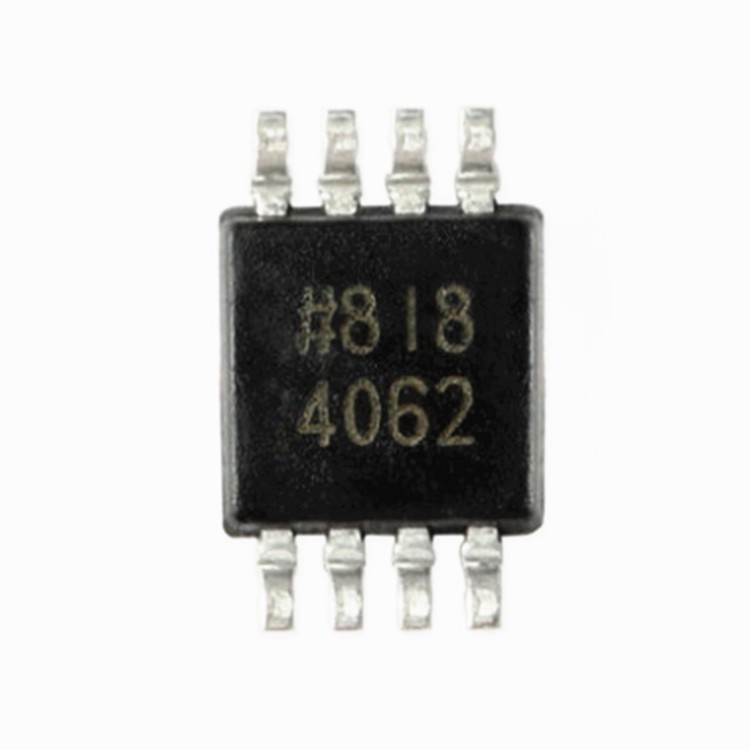

Electronic Components Ic Chip ADG721BRMZ-REEL7 ADG1419BRMZ-REEL7 IC SWITCH DUAL SPST 8MSOP Images
